Lost Wax Investment Casting

- Investment Casting Materials

Investment casting is a highly precise casting technology that produces high-precision and complex-shaped metal castings by using fusible wax patterns to make casting molds. Its main advantages include excellent accuracy and surface finish, with dimensional accuracy of ±0.05% to ±0.1% and surface finish of Ra 1.6 μm, reducing the need for subsequent processing. It is suitable for a variety of metal materials, such as carbon steel, alloy steel, stainless steel, copper alloy, aluminum alloy, titanium alloy and precious metals.

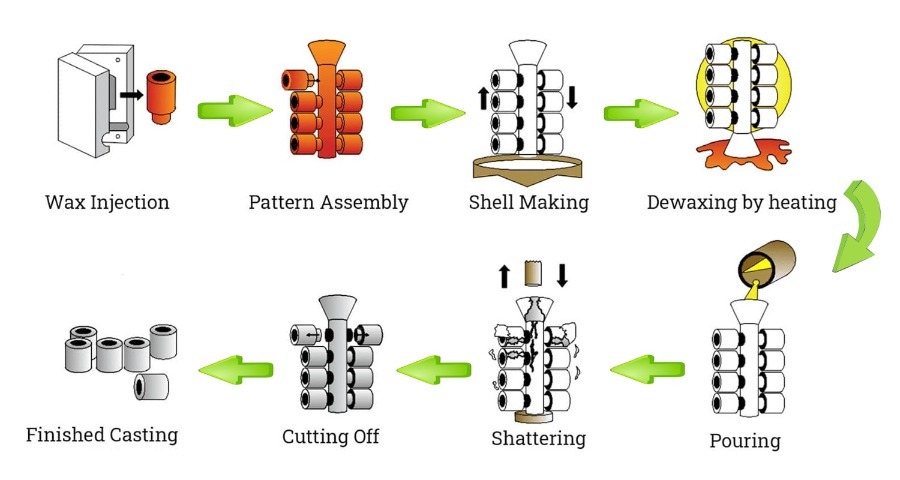

The Investment Casting Process

1. Pattern Making

● Design and Prototyping: Start by creating a precise prototype based on the product design or 3D model. This step is crucial for ensuring the final product meets quality and functional requirements.

● Wax Pattern Production: Use the prototype as a template to produce multiple wax patterns through injection molding. The wax material typically used is specialized casting wax, which has good flowability and easy demolding properties.

2. Assembly

● Pattern Tree Construction: Assemble multiple wax patterns into a "tree" structure, also known as the gating system. Arrange the patterns in a way that ensures they will be correctly positioned during the casting process.

● Securing Patterns: Use specialized tools to securely attach the wax patterns to the main trunk of the gating system, ensuring they remain in place during pouring.

3. Shell Building

● Initial Dip: Dip the assembled wax pattern tree into a refractory slurry to completely coat it. This forms the first layer of the ceramic shell.

● Coating with Sand: Immediately after dipping, immerse the coated tree in fine sand or spray it with a sandblaster to ensure a uniform layer of refractory material covers the surface.

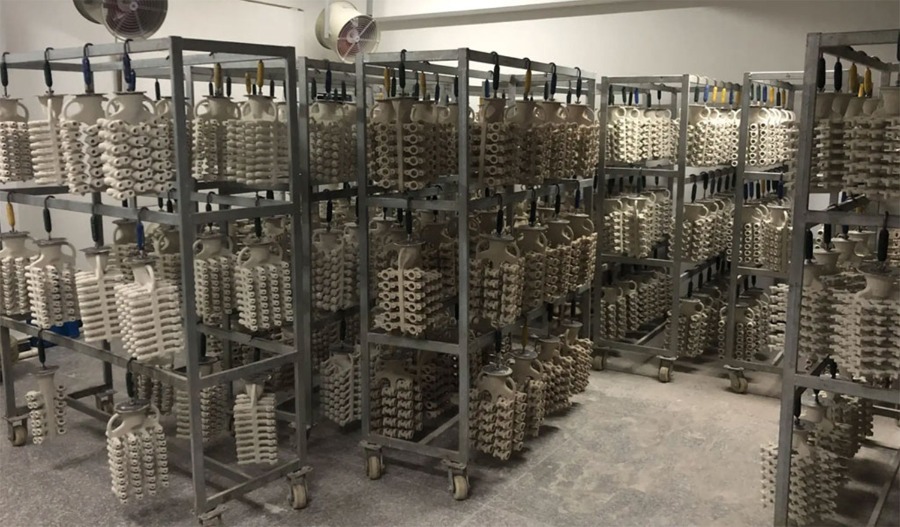

● Drying: Place the coated tree in a well-ventilated area to dry naturally, or use hot air to speed up the drying process. Ensure each layer dries thoroughly before applying the next.

● Building Multiple Layers: Repeat the dipping and coating process multiple times to build up the thickness and strength of the ceramic shell until it meets the required specifications.

4. Dewaxing

● Heating: Place the completed ceramic shell in a heating furnace and gradually increase the temperature to melt the wax inside.

● Collecting Wax: Collect the melted wax for recycling and reuse.

5. Firing

● High-Temperature Treatment: Continue to raise the temperature to perform high-temperature firing, which removes any remaining organic materials and hardens the ceramic shell.

● Cooling: Allow the ceramic shell to cool slowly to prevent thermal shock and cracking.

6. Pouring

● Metal Preparation: Select the appropriate metal material, such as stainless steel or nickel-based alloys, and melt it into a liquid state.

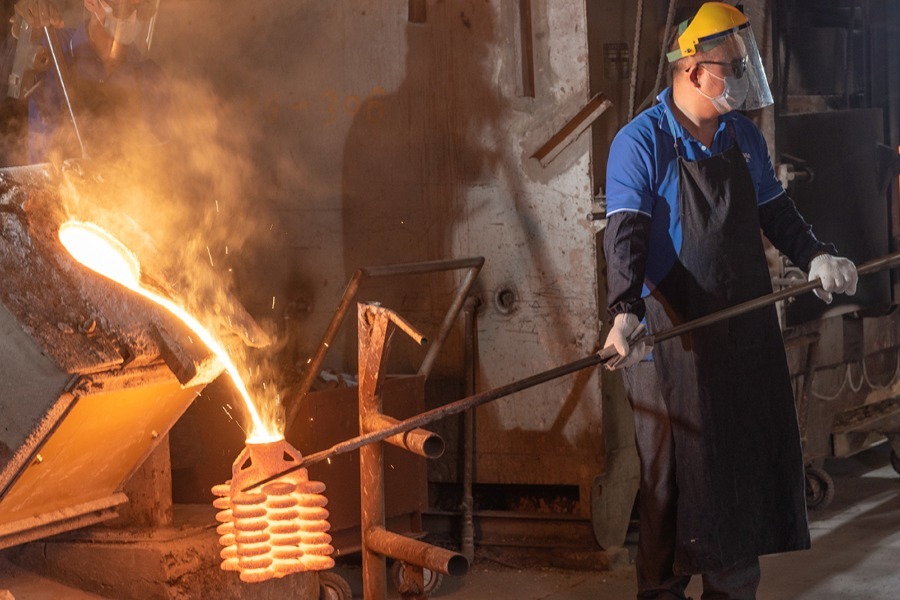

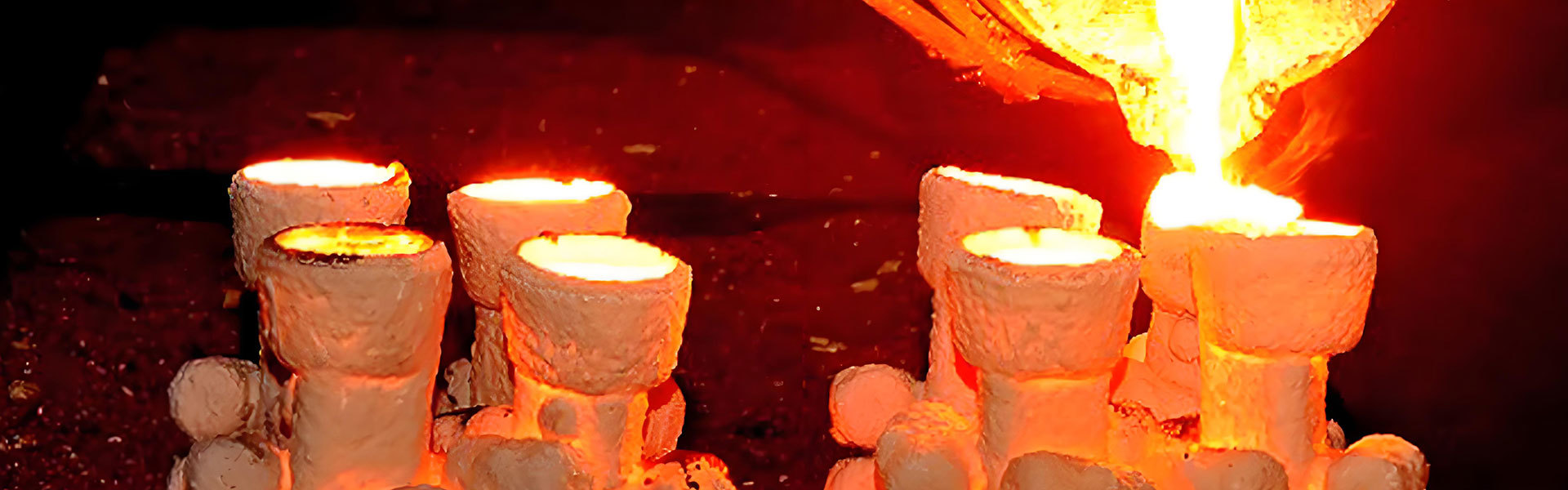

● Pouring Metal: Pour the molten metal into the ceramic shell through the gating system, ensuring it fully fills the cavity.

● Cooling: Let the metal solidify and cool naturally within the shell, or apply forced cooling if necessary.

7. Shell Removal and Cleaning

● Breaking the Ceramic Shell: Use hammers, vibratory equipment, or chemical solvents to carefully remove the outer ceramic shell.

● Finishing: Grind and clean the cast part to remove any remnants of the gating system and other excess material, ensuring a smooth and clean surface.

8. Inspection and Finishing

● Quality Inspection: Perform dimensional, visual, and performance inspections on the cast part to ensure it meets the design requirements.

● Post-Processing: Depending on the needs, conduct additional machining, surface treatments, or other finishing processes to achieve the final product specifications.

Investment Casting Applications

The Advantages & Disadvantages of Investment Casting

- Advantages of Investment Casting

1. High Precision

● Complex Shapes: Investment casting can produce highly complex shapes and intricate details, making it ideal for parts with complex geometries.

● Dimensional Accuracy: The use of wax patterns and ceramic shells ensures high dimensional accuracy, typically achieving IT7-IT8 tolerance levels.

2. Excellent Surface Finish

● Reduced Post-Processing: The smooth surface finish often eliminates or minimizes the need for additional machining, reducing production costs and time.

● Aesthetic Quality: For items requiring a visually appealing surface, such as jewelry and decorative pieces, investment casting provides superior surface quality.

3. Material Versatility

● Wide Range of Metals: This process works with a variety of metals and alloys, including stainless steel, nickel-based alloys, titanium, and aluminum, catering to diverse industry needs.

● High-Performance Materials: It can produce parts from high-strength, heat-resistant, and corrosion-resistant materials.

4. Cost-Effective for Small Batches

● Economical for Limited Runs: Investment casting offers cost-effective solutions for small batch productions of high-precision parts.

● Low Scrap Rate: The high precision and reliability of the process result in a low scrap rate, reducing material waste.

5. Design Flexibility

● Customization: Designs can be tailored to meet specific customer requirements, allowing for the production of personalized and specialized parts.

● Rapid Prototyping: Quick prototyping techniques enable rapid design validation, accelerating the product development cycle.

- Disadvantages of Investment Casting

1. Higher Costs

● Initial Investment: High initial costs for equipment and mold production make investment casting less suitable for large-scale production.

● Longer Production Cycle: The entire process from pattern making to final casting takes longer, making it less suitable for urgent orders.

2. Complex Process

● Multiple Steps: The process involves several steps, including pattern making, assembly, shell building, dewaxing, firing, and pouring, each requiring strict control.

● Technical Expertise: Operators need high levels of skill and experience to ensure quality at each stage.

3. Material Limitations

● High-Melting-Point Metals: While applicable to many metals, casting high-melting-point metals like tungsten and molybdenum is more challenging and costly.

● Special Alloys: Some special alloys may develop porosity or inclusions during melting, affecting the quality of the cast parts.

4. Environmental Impact

● Resource Consumption: The process uses significant amounts of refractory materials and energy, impacting the environment.

● Waste Management: Proper disposal of ceramic shells and wax patterns is necessary to avoid environmental pollution.

5. Size Limitations

● Large Parts: Investment casting is more suitable for small to medium-sized parts, with limitations for larger components.

● Weight Constraints: Parts produced typically weigh less than a few dozen kilograms due to process constraints.

6. Surface Defects

● Porosity and Inclusions: Despite the smooth surface finish, cast parts may occasionally exhibit porosity or inclusions, affecting performance.

● Dimensional Changes: High temperatures during processing can cause slight dimensional changes, requiring post-casting adjustments.
