High Pressure Die Casting
What is High-Pressure Die Casting?
- High Pressure Die Casting Materials
Material | Properties | Applications |
Aluminum Alloys | - Lightweight:Low density, ideal for light components - Corrosion Resistance:Good resistance to corrosion - Thermal Conductivity:Excellent for heat dissipation - Mechanical Properties:Moderate strength and hardness, suitable for various surface treatments | - Automotive:Engine blocks, transmission cases, wheels - Consumer Electronics:Smartphone and laptop casings - Household Appliances:Air conditioners, refrigerators |
Zinc Alloys | - Castability: Excellent flow, suitable for complex and detailed parts - Cost-Effective: Relatively inexpensive, ideal for high-volume production - Strength:High strength at room temperature - Surface Treatment: Easy to plate and paint | - Automotive:Decorative parts, small components - Consumer Electronics: Connectors, casings - Household Appliances:Switches, decorative parts |
Magnesium Alloys | - Extremely Light:Lowest density among practical metals - Strength and Stiffness:High strength and stiffness, suitable for structural components - Vibration Damping: Good vibration absorption - Processability:Easy to cast and machine | - Automotive: Instrument panels, seat frames - Aerospace:Internal aircraft structures - Consumer Electronics: Laptop casings, smartphone casings |
Copper Alloys | - High Strength:Excellent mechanical strength and wear resistance - Electrical and Thermal Conductivity:Superior for electrical and thermal applications - Corrosion Resistance:Good resistance to corrosion in various environments - Cost:Higher cost, suitable for high-performance applications | - Automotive:Radiators, connectors - Electronics:Circuit boards, terminals - Household Appliances:Heating elements, connectors |

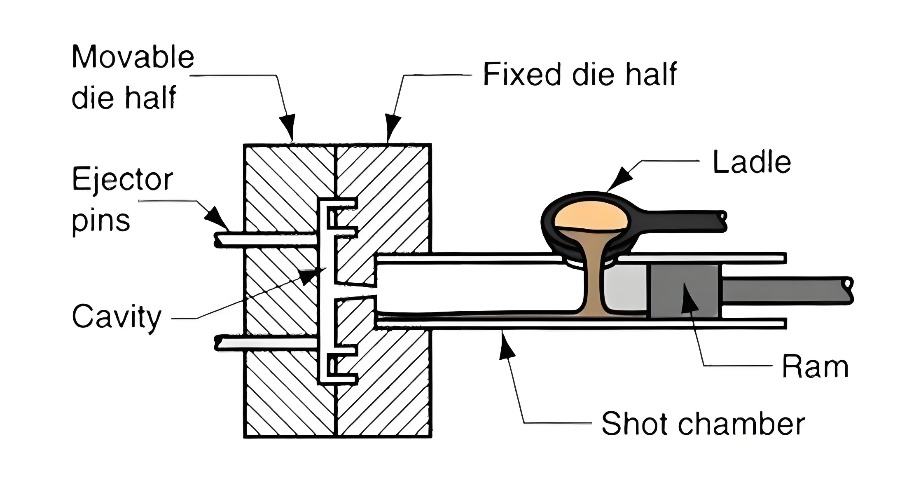

High Pressure Die Casting Process
The basic principle of high-pressure die casting is to fill the die casting cavity with liquid or semi-liquid metal at a high speed under high pressure, and then form and solidify under pressure. The process includes the following steps:
1. Preparation:
● Preheat the die to a specific temperature.
● Apply a release agent to the die surface to ensure easy part ejection.
2. Clamping:
● Use a powerful hydraulic system to securely close the two halves of the die.
3. Injection:
● Inject molten metal into the die cavity at high speed and pressure through a system of runners and gates.
4. Cooling:
● The molten metal quickly cools and solidifies in the die due to the temperature difference between the hot metal and the cooler die surface.
5. Ejection:

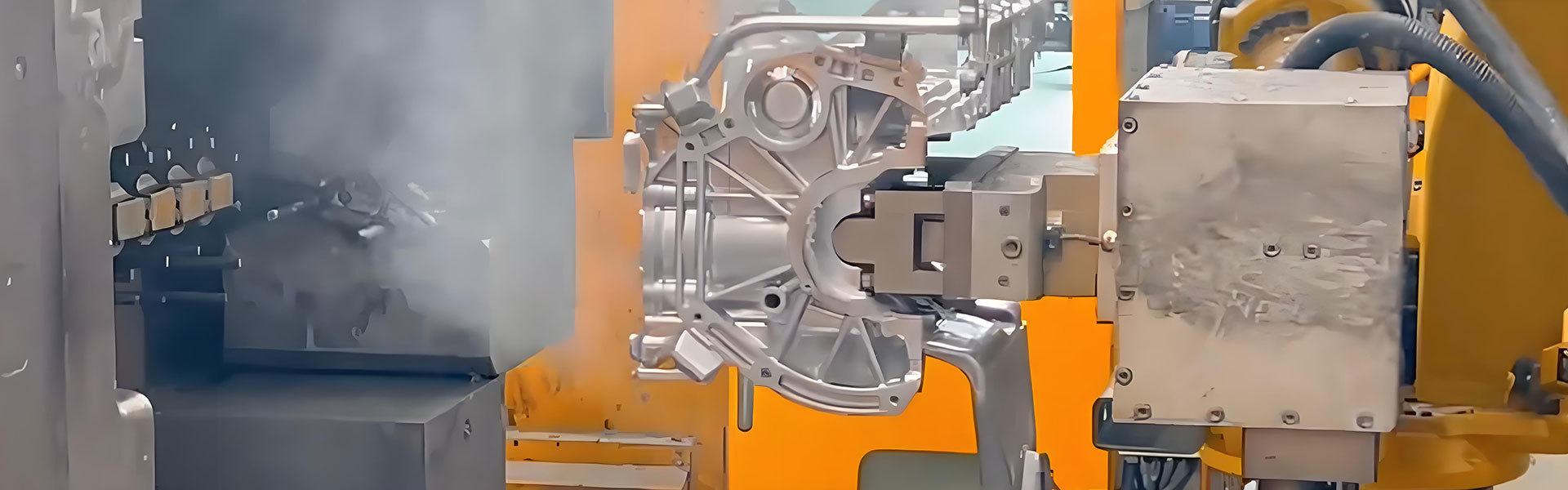

● Once the metal has solidified, open the die, and use ejector pins to push the part out.
6. Trimming and Finishing:
● Remove excess material, such as flash or gates.
● Perform additional finishing processes if needed, such as machining or surface treatment.
Considerations
● Temperature Control: Ensure the die and molten metal are at the appropriate temperatures for optimal filling and cooling.
● Pressure Control: Maintain consistent high pressure to ensure the molten metal fully fills the die cavity.
● Cooling Time: Adjust the cooling time based on the size and thickness of the part to ensure proper solidification.
● Ejection Force: Use the appropriate ejection force to avoid damaging the part or the die.
By following these steps, high pressure die casting efficiently produces high-precision parts with complex geometries, suitable for a variety of industrial applications.
The minimum cross-sectional area and minimum draft angle corresponding to various materials are listed in the following table
Material | Minimum Cross-Sectional Area (mm²) | Minimum Draft Angle (°) |
Aluminum Alloys | 0.5 - 1.0 | 0.5 - 1.0 |
Zinc Alloys | 0.3 - 0.5 | 0.5 - 1.0 |
Magnesium Alloys | 0.5 - 1.0 | 0.5 - 1.0 |
Copper Alloys | 0.5 - 1.0 | 0.5 - 1.0 |
The Advantages & Disadvantages of High Pressure Die Casting
- Advantages of High Pressure Die Casting
1. High Production Efficiency: High-pressure die casting enables rapid production cycles, often completing a cycle in just a few seconds. This efficiency makes it perfect for mass production.
2. Complex Geometries: The process can create parts with intricate shapes and thin walls, which other casting methods might struggle to achieve.
3. Consistent Quality: Parts produced through high-pressure die casting boast excellent dimensional accuracy and surface finish, reducing the need for secondary machining.
4. Material Utilization: The process uses only the necessary amount of metal to fill the die cavity, minimizing waste.
5. Versatility: A wide range of materials, including aluminum, zinc, and magnesium alloys, can be used, catering to various application requirements.
- Disadvantages of High Pressure Die Casting
1. High Initial Costs: The initial investment in die casting equipment and tooling is significant. Precision-machined dies can be expensive.
2. Limited Size Range: High-pressure die casting is generally better suited for smaller to medium-sized parts. Larger parts may require other casting methods due to equipment limitations.
3. Material Constraints: Some metals, especially those with higher melting points like steel, are not practical for high-pressure die casting due to the extreme temperatures and pressures involved.
4. Porosity Issues: Rapid solidification can sometimes cause porosity in the castings, affecting the strength and durability of the parts. Post-casting treatments may be necessary to address these issues.
5. Design Flexibility: Once a die is created, modifying the design can be costly and time-consuming. This rigidity can be a drawback for projects requiring frequent design changes.
Overall, high-pressure die casting is a powerful technique for producing high-quality, complex parts efficiently, but it requires careful consideration of the associated costs and material constraints.
